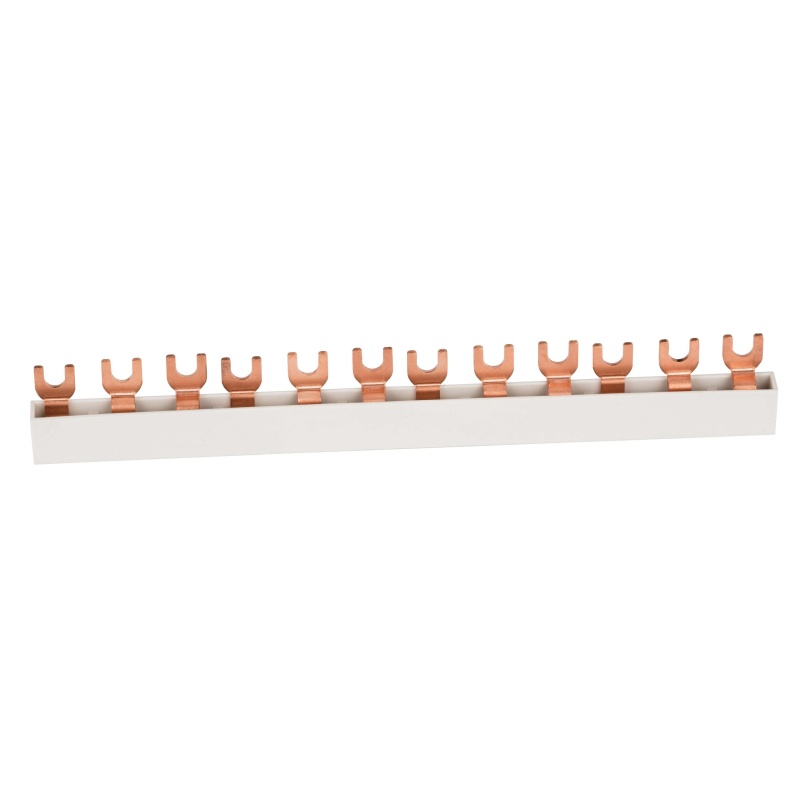

IZ10/3F/18C Busbar 3P 10mm² 18M Fork
Tootekood:
0110031518
Pakis: 20
Pakis: 20
| Technical parameters: | ||
| Nominal voltage (Ue) | 240/415 | [V] |
| Rated insulation voltage (Ui) | 500 | [V] |
| Max. current (Ie) | 63 | [A] |
| Surge voltage (Uimp) | 4 | [kV] |
| Material of insulation | PC-ABS | |
| Colour of material of insulation | RAL 7035 | GREY |
| Material of conductor | Cu-ETP | |
| Endcap usage | NO | |
| Norm compliance: IEC 60947-1, IEC 60947-7-1 |
